SIBERIA DRH LED BAR 22″ – WITH HEATED LENS

SIBERIA DRH LED BAR 22″ – WITH HEATED LENS
Art. no. 809178

Siberia DRH 22” is a double-row LED bar with a built-in heated lens. Created to give you maximum visibility regardless of the weather. The feature is automatic, starts at 5°C, and keeps snow and ice away from the lens – without any handling by the driver.

Siberia DRH has everything you need and wants in terms of design. It blends in perfectly with your vehicle. The exclusive costume gives an unbeatable overall impression. Every little element is created to bring out the best possible performance and interact in perfect harmony. Rest your eyes on the unique dual position light that runs in a line. Express your style further by choosing between amber and white position light. Siberia DRH is E-approved with 1 lux at 450 meters.

Best mounted with our developed Siberia pro cable kit 1x DT-connector (Part. No. 270477), the included brackets (both side and back), and our Siberia brackets. Use Siberia DR bar bracket (Part. No. 809185) for mounting the LED bar in the front of the frame or other applications, as well as Siberia professional universal bracket kit (Part. No. 270476) that fits all LED bars from Strands Lighting Division´s range and gives you a perfect installation every time.

  • Brand Strands Lighting Division

  • Type of lamp LED
  • Type of LED Osram
  • PCS LED´s 40
  • Voltage (V DC) 10-40V DC
  • Theoretical effect (w) 12V 200
  • Theoretical effect (w) 24V 200
  • Consumption (w) 12V 91/118.6
  • Consumption (w) 24V 91/116.3
  • Functions Heated lens amber and white position light high beam
  • Theoretical lumen 16000
  • Actual lumen 6316
  • 1 LUX @ m 450
  • Kelvin 6000
  • IP-class 67/69K
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White and amber
  • Beam pattern Combo
  • Position light Yes amber and white
  • Connection DT-4
  • Cable length (mm) 500
  • Material bracket Stainless steel side bracket
    Aluminum rear mounting feet
  • Material housing/chassi Aluminium
  • Material lens Polycarbonate
  • Length (mm) 562
  • Depth (mm) 716
  • Height (mm) 76
  • Height including bracket (mm) 89
  • Operating temperature -30°C – +45°C
  • ADR-approved No
  • E-approved  Yes
  • According to regulation ECE R112 R7
  • Reference number 45
  • EMC ECE R10

  • Black cable – (Negative)
  • Red cable + (Positive)
  • Yellow cable Amber Position light
  • Grey cable White Position light
  • Mounting details included Screws washers bolts

  • Length inner box (mm) 720
  • Height inner box (mm) 125
  • Weight (kg) 3.1
  • PCS in master carton 6
  • Lenght master carton (mm) 735
  • Height master carton (mm) 265
  • Widht master carton (mm) 370
  • Weight master carton (kg) 18.6
  • Country of orgin China
  • Taric code 85122000
  • EAN 7350133811756

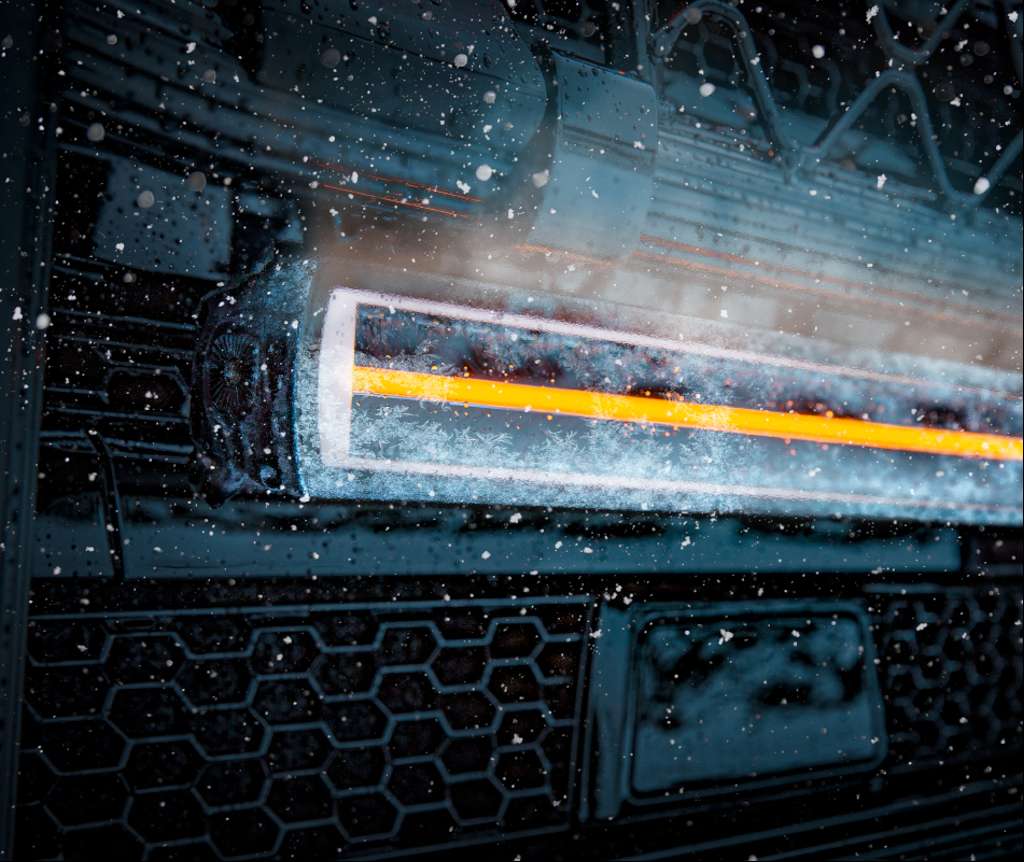

AUTOMATICALLY HEATED LENS

Siberia DRH comes with a built-in heated lens. The feature is automatic, starts at 5°C, keeps snow and ice away from the lens, and stops when the temperature exceeds 5 °C – without any handling by the driver. At the side of the LED bar, you get a small LED that goes on with an amber light to measure the temperature when you start up the LED bar. If it’s 5 °C outside, it stays on, and if the temperature exceeds 5 °C it turns off.

UNBEATABLE OVERALL IMPRESSION

Siberia DRH is developed for the harsh cold climate. The LED bar’s exclusive suit gives an unbeatable overall impression. Every little element is created to bring out the best possible performance regardless of the weather conditions.


EASY TO INSTALL

The back of Siberia DRH is curved, and the house is designed to be mounted directly on light bars or roof bars. Easy to install with the included side and back brackets, Siberia pro cable set 1x DT (art. no. 270477), or the Siberia brackets.

Use the Siberia DR bar bracket (Art. no. 809185) for mounting the LED bar on bars and roof bars, or the Siberia professional universal bracket kit (Art. no. 270476), which fits perfectly with all the LED bars from Strands Lighting Division´s range.
