Strands Lighting Division

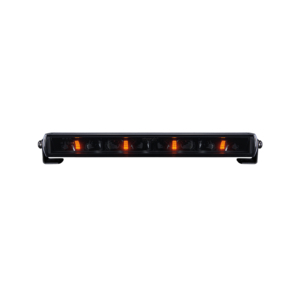

DARK KNIGHT NUUK 14″ LED BAR

SKU: 809131
RRP: €187.40 (Excl. tax)

Choose variant

DARK KNIGHT NUUK 14″ LED BAR

RRP: €187.40 (Excl. tax)
SKU: 809131
Chosen

DARK KNIGHT NUUK 20″ LED BAR

RRP: €245.70 (Excl. tax)
SKU: 809132
Choose

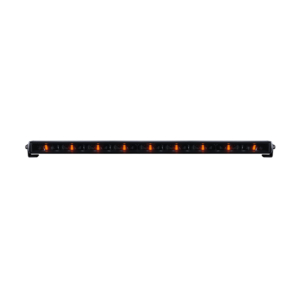

DARK KNIGHT NUUK 30″ LED BAR

RRP: €288.90 (Excl. tax)
SKU: 809133
Choose
Buy in store Buy in USA
Manual

Welcome to the future. This is Dark Knight Nuuk. A real game-changer. Better performance. Less consumption. Developed for electric vehicles. We are ready to break new ground. To be at the forefront as the first company in the world to CO2-compensate vehicle lighting by planting a tree corresponding to 50 kg CO2 for every sold Dark Knight Nuuk. We dare to go first with a constant passion for changing the market. We will start with Dark Knight Nuuk.Dark Knight Nuuk is the next generation of LED bars. Ready to break new ground, made for electric vehicles, and comes with a sophisticated look and passion in every detail. An all-black look with a dark lens and super-slim no edge design, almost invisible when it becomes one with your vehicle. A perfect match for electric cars. Better performance. Less consumption. Standing behind our 3-year function warranty. Dark Knight Nuuk comes in three different sizes. Choose between 14”, 20”, and 30”. All models are E-approved according to ECE R7, R112.This LED bar is the future, developed with the environment, the driver, and the optimal lighting experience in focus. The light beam creates the perfect balance and gives you light where you need it—1 lux at 357 m, 452 m, or 481 m depending on the size. Dark Knight Nuuk comes in an aluminum housing, and the dark lens is made of transparent PC (polycarbonate). This solid material protects the diodes from stone chips and weather. The robust aluminum housing withstands salt and other stresses from the harsh Nordic climate. Rest your eyes on the unique glow from Dark Knight Nuuk´s dual position light. Choose between amber or white. The LED bar is easy to mount and fit with side or back brackets, specially made for LED bars. Depending on the size, you get an 0,5 m cable with DT-4 connection for the lengths 14” and 20” and a 2,5 m cable for 30”. Boost your passion, and welcome to the future. Ready to break new ground and be in the leading position for a greener planet. For a healthier planet.

– CO2-COMPENSATION
– BETTER PERFORMANCE, LESS CONSUMPTION
– FUTURE DESIGN
– E-APPROVED AND 3-YEAR FUNCTION WARRANTY

    • Type of Lamp LED
    • PCS LED´s 8
    • Voltage (V DC) 9-36V DC
    • Theoretical effect (w) 12V 80
    • Theoretical effect (w) 24V 80
    • Consumption (w) 12V 67
    • Consumption (w) 24V 60
    • Theoretical lumen 7600
    • Actual lumen 6500
    • 1 LUX @ m 357
    • Kelvin 6000
    • IP-class 68/69K
    • Color housing Black
    • Color lens Black
    • Beam pattern Combo
    • Position light Yes, amber and white
    • Connection DT4
    • Cable length (mm) 500
    • Material bracket Side bracket: Stainless steel (SUS201) Bottom bracket: Aluminium (#6063)
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 353
    • Depth (mm) 69,8
    • Height (mm) 38,5
    • Height including bracket (mm) 51,3
    • Operating temperature -40°C - +60°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R7, R112
    • Reference number 27,5
    • EMC ECE R10
    • 1 LUX at (m) for 1 unit 357,0714214
    • 1 LUX at (m) for 2 units 504,9752469
    • 1 LUX at (m) for 3 units 618,4658438
    • 1 LUX at (m) for 4 units 714,1428429
    • 1 LUX at (m) for 5 units 798,4359711
    • 1 LUX at (m) for 6 units 874,6427842
    • 1 LUX at (m) for 7 units 944,7221814
    • 1 LUX at (m) for 8 units 1009,950494
    • 1 LUX at (m) for 9 units 1071,214264
    • 1 LUX at (m) for 10 units 1129,158979
    • Black cable - (Negative)
    • Red cable + Positive
    • White cable + White Position light(Positive)
    • Yellow cable + Amber Position light(Positive)
    • Mounting details included Screws, washers, bolts
    • Length inner box (mm) 435
    • Height inner box (mm) 50
    • Depth inner box (mm) 95
    • Weight (kg) 0,9
    • PCS in master carton 12
    • Length master carton (mm) 460
    • Height master carton (mm) 177
    • Width master carton (mm) 408
    • Weight master carton (kg) 13,7
    • Taric code 85122010
    • EAN 7350133810698

FUTURE DESIGN

Dark Knight Nuuk comes in a unique smooth suit with a sophisticated all-black look with passion in every detail. Super-slim no, edge design, almost invisible when it becomes one with your vehicle. A perfect match for electric vehicles.

BETTER PERFORMANCE, LESS CONSUMPTION

Dark Knight Nuuk is a breathtaking game-changer. A LED bar designed for electric vehicles, developed with the environment, the driver, and the optimal lighting experience in focus. The light beam creates the perfect balance and gives you light where you need it. Better performance, less consumption.

E-APPROVED AND 3-YEAR FUNCTION WARRANTY

We always guarantee visibility, safety, and long-term product durability when using lighting from Strands Lighting Division. Dark Knight Nuuk is E-approved according to ECE R7 and R11 and stands behind Strands Lighting Division´s unique 3-year function warranty. Always with your visibility and safety in focus.

CO2-COMPENSATION

We dare to go first with a constant passion for changing the market. To constantly evolve and take responsibility for our environment. It ́s about time for a new era, and it ́s about time to compensate for the climate we use. We want to take responsibility and be at the forefront. We are now the first company in the world to CO2-compensate vehicle lighting. We will start with Dark Knight Nuuk. For every Dark Knight Nuuk we sell, we compensate for CO2 by planting a tree corresponding to 50 kg CO2. For a greener planet. For a healthier planet.
