DARK KNIGHT IDENTITY 20″ LED BAR

DARK KNIGHT IDENTITY 20″ LED BAR
Art. no. 809165

The Dark Knight series continues to push the boundaries and presents the Dark Knight Identity. From the same family as the driving light Dark Knight Intense but as an E-approved LED bar 20”.

A futuristic black knight, charged with confidence. A tribute to innovation and symmetry. With a confident Identity, you get a powerful driving experience beyond the ordinary. Dark Knight Identity is loaded with power and full brightness. With the support of advanced TIR optics, Identity is developed to provide both a wide and long beam pattern at over 500 meters. TIR technology improves overall efficiency, collects, and directs light in a perfect balance, exactly where you need it. Perfect for varied driving no matter what type of road you drive on.

Dark Knight Identity exudes confidence, both day and night. With the advanced lighting forces, you can enjoy both the fantastic night horizon and the beautiful sunrise. The black components of the LED bar contribute to the futuristic look and give an exclusive dark expression. Identity is advantageously combined with the other members of the Dark Knight series to create a harmonious unit.

The slim design of the LED bar has a depth of only 55.5 mm, a height of 58 mm or 75 mm including brackets, which means that it fits almost all vehicles in need of a driving light in the form of an LED bar. The LED bar has both rear and side brackets for easy mounting. Best mounted with Siberia professional bracket kit (270476) together with our specially developed cable kit Siberia cable set professional 1x DT or Siberia cable set professional 3x DT. The position light comes with duo function, choose between amber and white light. Together with the unique position light, an obvious impression is created. See and enjoy the soft starting effect, where the light slowly increases in intensity before it finally reaches full capacity. Identity together with a curved line, surrounded by 12 diodes, forms a perfect pattern. A own identity.

RRP: 249 EUR
EX VAT

  • Brand Strands Lighting Division

  • Type of lamp LED
  • Type of LED LP
  • PCS LED´s Main beam: 12
    Position light: 5
  • Voltage (V DC) 9-36V DC
  • Theoretical effect (w) 12V 120
  • Theoretical effect (w) 24V 120
  • Consumption (w) 12V Main beam: 98
    Position light: 2
  • Consumption (w) 24V Main beam: 91
    Position light: 2
  • Consumption specific function (w) 12V Main beam: 98
    Position light: 2
  • Consumption specific function (w) 24V Main beam: 91
    Position light: 2
  • Theoretical lumen 12000
  • Actual lumen 9800
  • 1 LUX @ m 458
  • Kelvin 6000
  • IP-class 68/69K
  • Colour housing Black
  • Colour lens Clear
  • Colour LED´s White and Amber
  • Beam pattern Combo
  • Position light YES (White and Amber)
  • Connection DT4
  • Cable length (mm) 500
  • Material bracket Side bracket: Stainless steel (SUS 304)
    Bottom bracket: Aluminum (AL6063)
  • Material housing/chassi Aluminum
  • Material lens Polycarbonate
  • Length (mm) 520
  • Depth (mm) 55.5
  • Height (mm) 58
  • Height including bracket (mm) 75
  • Operating temperature -40 – +60°C
  • ADR-approved No
  • E-approved  Yes
  • According to regulation ECE R112 R7
  • Reference number 50
  • EMC ECE R10

  • Black cable – (Negative)
  • Red cable + (Positive)
  • White cable + White Position light(Positive)
  • Yellow cable + Amber Position light(Positive)
  • Mounting details included Screws washers bolts

  • Length inner box (mm) 587
  • Height inner box (mm) 100
  • Weight (kg) 1.9
  • PCS in master carton 6
  • Lenght master carton (mm) 593
  • Height master carton (mm) 413
  • Widht master carton (mm) 220
  • Weight master carton (kg) 17.6
  • Country of orgin China
  • Taric code 85122010
  • EAN 7323030187576

BEAM PATTERN

The success continues with Dark Knight Identity. From the same family as Dark Knight Intense comes Identity, an E-approved LED bar in 20”. A tribute to innovation and symmetry. A black futuristic knight fully charged with confidence. With a brightness in full intensity. With a confident Identity, you get a powerful driving experience beyond the ordinary. Loaded with power and a brightness in full intensity. With the support of advanced TIR optics, Identity is developed to provide both a wide and long beam pattern at over 500 meters. TIR technology improves overall efficiency, collects, and directs light in a perfect balance, exactly where you need it. Perfect for varied driving no matter what type of road you drive on.

DARK EXCLUSIVITY

Dark Knight Identity exudes confidence, both day and night. The black components of the LED bar contribute to the futuristic look and give an exclusive dark expression. Identity is advantageously combined with the other members of the Dark Knight series to create a harmonious unit.


UNIQUE POSITION LIGHT

Together with the unique position light, an obvious impression is created with a curved line surrounded by 12 diodes. Together, the components form a perfect pattern. A own identity. See and enjoy the soft starting effect, where the light slowly increases in intensity before it finally reaches full capacity. The position light comes with duo function, choose between amber and white light.

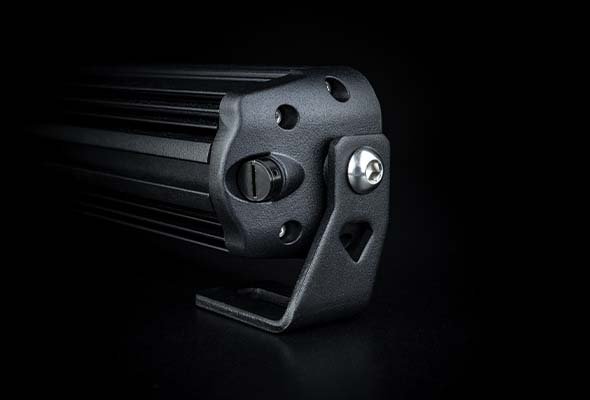

SEVERAL POSSIBILITIES FOR EASY INSTALLATION

The slim design of the LED bar has a depth of only 55.5 mm, a height of 58 mm or 75 mm including brackets, which means that it fits almost all vehicles in need of a driving light in the form of an LED bar. The LED bar has both rear and side brackets for easy mounting. Best mounted with Siberia professional bracket kit together with our specially developed cable kit Siberia cable set professional 1x DT.

Dark Knight Identity creates perfection at all angles.
