Strands Lighting Division

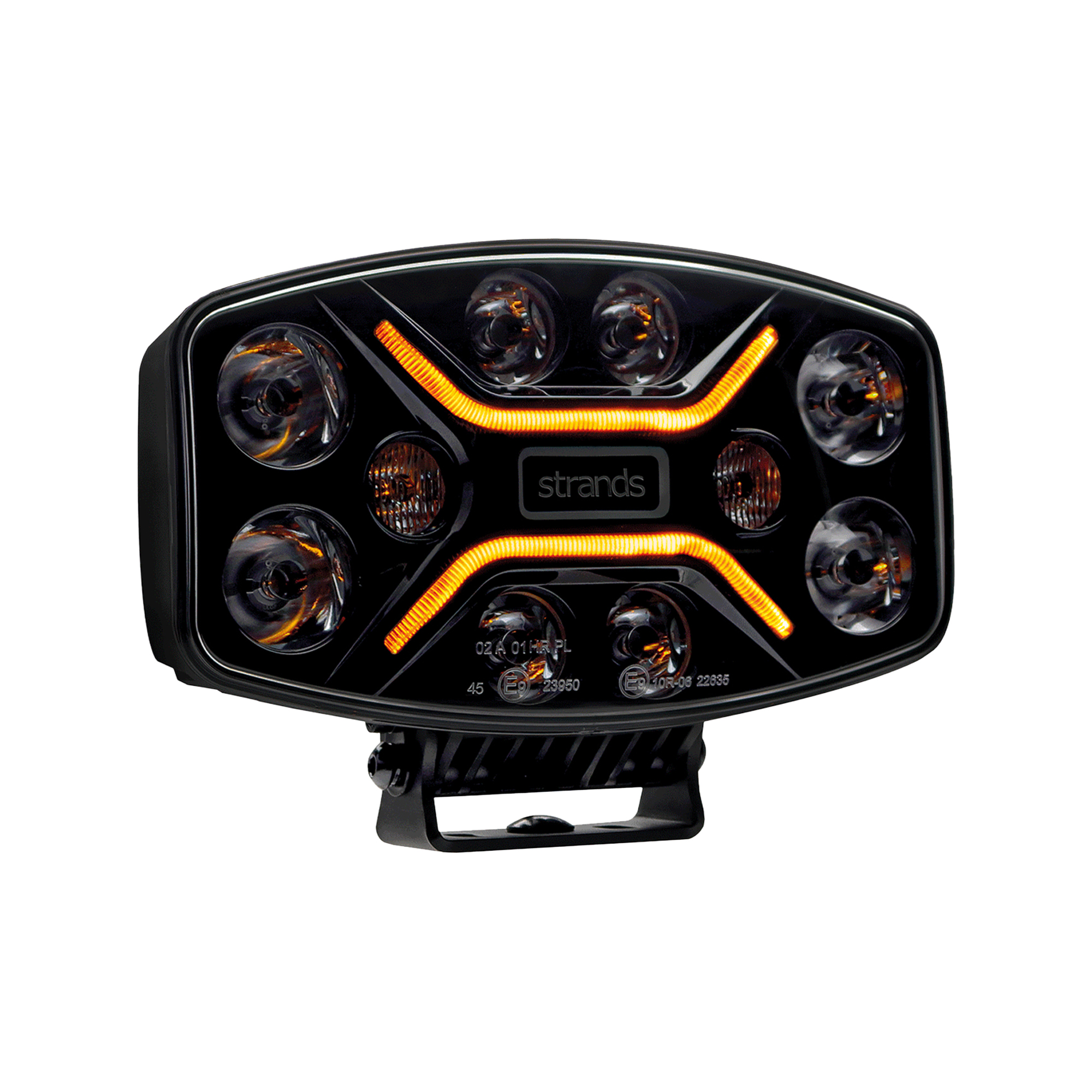

COMPLETE KIT 2x DARK KNIGHT INSANE LED

SKU: 270698-KIT2
RRP: 640.60 (Excl. tax)

A complete driving light kit with 2 pcs Dark Knight Insane, bracket, cable kit and top braces.

Get ready to go Insane. To go from 0 to 100. Dark Knight Insane is here, the newest member of the Dark Knight series. With all your lighting needs into one single lamp: A driving light with duo position light and warning light. Created with passion and loaded with all the features you want. Dark Knight Insane is a confident, futuristic Dark Knight charged with power and brightness in full intensity. Ready for a powerful driving experience beyond the ordinary.

An oval driving light with warning light and position light with duo function, choose between amber and white light.Insane creates your chance to live out your passion and become an unstoppable Dark Knight. With a beam pattern created for the hard-working driver, in need of a perfect balance between length and width. The total efficiency collects and directs the light, exactly where you need it.Insane radiates self-confidence both day and night. Intended to be seen from all angles on the road and as to drive in daylight even during the dark hours of the night. Meet the fearless Knight’s eyes from the unique position light. See and enjoy the soft starting effect, where the light slowly increases in intensity before it finally reaches its full capacity.

With dark details and slim design, it is easy to mount many in a row and quickly become one with your vehicle. Combined with advantage together with the other members of the Dark Knight series to create a harmonious unit.

    • Unit KIT
    • Type of Lamp LED
    • PCS LED´s High beam: 2x 8pcs (4pcs 10W+4pcs 20W) Position Light: 2x 4pcs 0,5W Warning Light: 2x 2pcs 3W
    • Voltage (V DC) 9-36V DC
    • Theoretical effect (w) 12V 2x 120
    • Theoretical effect (w) 24V 2x 120
    • Consumption (w) 12V 2x 112
    • Consumption (w) 24V 2x 98
    • Patterns 1
    • Functions Driving light, position light, warning light
    • Theoretical lumen 2x 12000
    • Actual lumen 2x 10500
    • 1 LUX @ m 620 (2 pcs)
    • Kelvin 6000
    • IP-class 68/69K
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/Amber
    • Beam pattern Combo
    • Position light Yes
    • Connection Cable
    • Cable length (mm) 2500
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 2x 247
    • Depth (mm) 70,7
    • Height (mm) 141
    • Height including bracket (mm) 170,5
    • Operating temperature -40 - +60°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R112, R7, R65
    • Reference number 2x 45
    • EMC ECE R10
    • EAN 7350133811398
